Orbit

$1,350.00 – $1,450.00

Smart 64 mm flat burr grinder with unique features to elevate your coffee experience

Mazzer 33MMazzer 33M
SSP MultipurposeSSP Multipurpose
$1,350.00
Description

May 2023 drop is sold out.


🚨 Orbit Grinder: Sign up for updates and news

The Acaia Orbit Grinder is in production! 🎉 To stay current on drop dates, production news, and regional releases, provide your information below.

⚠️ Please note that the Orbit Eclipse Edition is available to US residents only and will be released in a series of drops beginning in September 2022.





Our first-ever coffee grinder, the Orbit lands with unique features to meet your coffee brewing needs. The grinder is single-dosing friendly with features like an automatic cleaning purge that helps to reduce retention when grinding. If you prefer to pair with an Acaia Lunar, you can also activate Orbit’s grind by weight function and enjoy an effortless dosing experience. It is built and designed with Acaia’s proprietary technology from the motor driver to the companion app, offering advanced control of RPM and overall energy savings.

Eclipse Edition

Eclipse Edition Orbit grinders will be available for early adopters, explorers who enjoy treading new ground and getting a little messy. As a thanks for helping us launch our first grinder, we are including an assortment of gifts at no extra cost:

  • Extended product support for 18 months
  • Custom Orbit Eclipse Edition hat
  • Custom Orbit Eclipse Edition enamel pin
  • 53 mm Acaia dosing cup
  • Antistatic brush
  • Weigh to Brew Notebook
  • Serialized number plate

Eclipse Edition drops are available to US residents only, limit 1 per customer. We cannot accept orders which ship to a freight forwarding business; those orders will be canceled and refunded.

Model

AOT001 / AOT003

Product Weight

5600 g ± 10 g

Product Dimensions

W: 266 mm L: 108 mm H: 394 mm

Rated Voltage

100 V-240 V

Frequency

50/60 Hz

Motor

200 W Brushless DC Motor

Material

Aluminum, PC, Stainless Steel

Warnings CA Prop 65 Warning
Operating Ambient Temperature

0 - 40 °C

RPM Profile

600-1500 Adjustable RPM Profile

Duty Cycle

Recommended duty cycle for Orbit
is 60 s running time with a rest time of 30 s

Connectivity

Bluetooth 5.0

Warranty

1 Year

Inside the
Package

Acaia Orbit Coffee Grinder - Eclipse x 1

Power Cable x 1

Spout Extender x 1

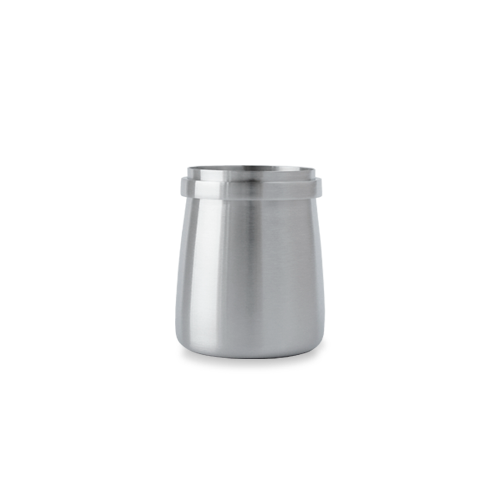

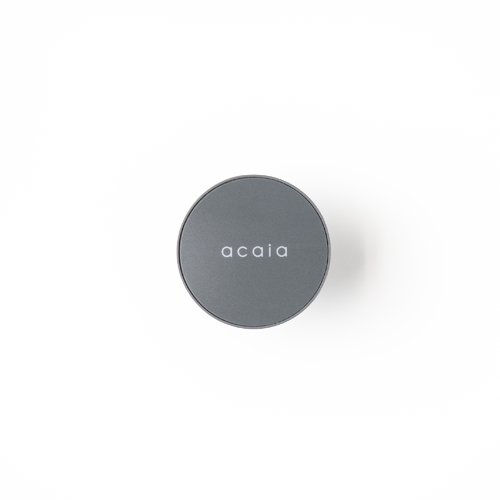

58 mm Portafilter Dosing Cup (M) with Magnetic Pad x 1

Lunar Magnetic Strip x 2

Lunar Magnetic Strips Application Tool x 1

The Orbit was designed in partnership with Weber Workshops and based on the successful design of the EG-1 grinder. We appreciate Weber’s guidance and advice during this process. Acaia is solely responsible for developing the grinder technology, manufacturing, selling, and managing after-sales product support.

ORBIT ECLIPSE

Orbit is ready to take on any of your coffee brewing needs. It features 64mm flat steel burrs, stepless grind adjustment, and its
single-dosing workflow includes features like a knocking chute
and automatic purge to keep coffee retention to a minimum.

The companion app includes customization options for the three
grinding presets, including RPM adjustment and profiling. The Orbit also includes a grind by weight function when paired with a Lunar espresso scale, allowing you to grind just the right amount every
time without pre-weighing your beans.

Watch the video to see the Orbit in action.

Single-dose

Weigh your whole beans and grind with minimum
retention. Pull a perfect shot without waste.

Grind-by-Weight

Connect your Lunar scale to the Orbit. Grind
precisely the right amount every time.

64 mm burrs

Equipped with Mazzer 33M 64mm burrs, the
Orbit is perfect for espresso and filter
brewing. Optional SSP Multipurpose burrs
available in the near future.

Stepless adjustment

Orbit’s 0.75 mm thread pitch allows you to dial in
your shot precisely, from light roast to dark roast coffee.

Personalize your Orbit

Use the Orbit companion app to customize your grinding
experience: adjust the grind speed between 600-1500 RPM,
swap the Orbit button actions, save profiles for grind by
weight or grind by time, and more.

Energy Efficient

Acaia believes that it is our social responsibility to be
conscious of environmental impact. Developed with
our in-house technology over the years, the Orbit is built
to reduce energy consumption and yet deliver
industrial high performance and smarter grinding.

Orbit Tolerances

All Orbit parts are individually measured during the quality
control process. This is to ensure they meet our precise
standards and allow for the best burr alignment. For
example, our grindersmust meet or exceed the following:

Burr mounting surfaces - 10 microns in flatness
Motor drive shafts - 20 microns in concentricity
Other critical parts - 20 micron tolerancesp

Burr Alignment

After assembly, our team test each grinder to ensure proper functionality, alignment, and grind quality. We use optical
imaging software to evaluate ground coffee during testing
for an expected level of uniformity, we measure the distance
between the burr lock point and burr touch point. Acceptable distances are < 1.5 marks for Mazzer 33M burrs and < 1 mark
for SSP Multipurpose burrs.

Single-dose

Weigh your whole beans and grind with minimum retention. Pull a perfect shot without waste.

Grind-by-Weight

Connect your Lunar scale to the Orbit. Grind precisely the right amount every time.

64 mm burrs

Equipped with Mazzer 33M 64mm burrs, the Orbit is perfect for espresso and filter brewing. Optional SSP Multipurpose burrs available in the near future.

Stepless adjustment

Orbit’s 0.75 mm thread pitch allows you to dial in your shot precisely, from light roast to dark roast coffee.

Personalize your Orbit

Use the Orbit companion app to customize your grinding experience: adjust the grind speed between 600-1500 RPM, swap the Orbit button actions, save profiles for grind by weight or grind by time, and more.

Energy Efficient

Acaia believes that it is our social responsibility to be conscious of environmental impact. Developed with our in-house technology over the years, the Orbit is built to reduce energy consumption and yet deliver industrial high performance and smarter grinding.

Orbit Tolerances

All Orbit parts are individually measured during the quality control process. This is to ensure they meet our precise standards and allow for the best burr alignment. For example, our grinders must meet or exceed the following:
Burr mounting surfaces -
10 microns in flatness
Motor drive shafts -
20 microns in concentricity
Other critical parts -
20 micron tolerances

Burr Alignment

After assembly, our team test each grinder to ensure proper functionality, alignment, and grind quality. We use optical imaging software to evaluate ground coffee during testing for an expected level of uniformity. For burr alignment, we measure the distance between the burr lock point and burr touch point. Acceptable distances are < 1.5 marks for Mazzer 33M burrs and < 1 mark for SSP Multipurpose burrs.

INSIDE THE PACKAGE

Below are the items you will receive when you order the Orbit

Orbit
Coffee Grinder

Power Cable

Spout Extender

58 mm Portafilter
Dosing Cup with
Magnetic Pad

Lunar
Magnetic Strips

Lunar
Magnetic Strips
Application Tool

Care and Cleaning

Do not immerse the Orbit or its parts in water. Use a soft cloth with warm water only to clean the product.
Do not use detergent or other chemicals for cleaning as it can damage the product.
